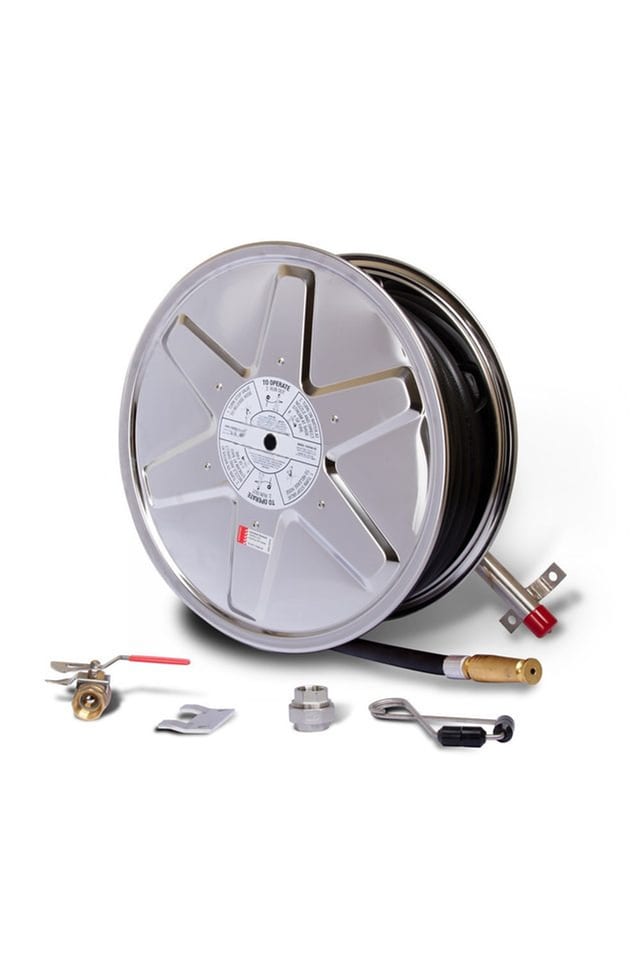

Stainless Steel Fire Hose Reel Complete 36m Hose
$450.00
Stainless steel 36m x 19mm fire hose reel — complete with all parts. Suitable for marine, coastal, food processing and corrosive environments. Approved to AS/NZS 1221. 1 year warranty.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The stainless steel 36m fire hose reel is specified wherever corrosion resistance is critical. Marine vessels, coastal buildings, food processing facilities, swimming pools, and industrial wet areas all demand a hose reel that will hold up over the long term without rusting, seizing, or degrading. Where a standard powder-coated steel reel would corrode within years in a salt or chemical environment, a stainless steel reel provides the service life to match the installation.
Supplied complete with all parts required for installation. Meets or exceeds AS/NZS 1221. 1-year warranty from date of delivery.
Key Features
- Stainless steel drum and fittings — corrosion resistant in salt, moisture, and chemical environments
- 36m hose — covers up to 50m floor area when combined with the hose reach
- 19mm hose diameter — standard AS/NZS 1221 specification
- Complete kit — no additional parts required for a standard installation
- 1-year warranty
Technical Specifications
| Approvals | AS/NZS 1221:1997 |
| Back Plate to Wall | 50mm |
| Ball Valve Assembly Construction | Brass, with SS Handle |
| Ball Valve Assembly Finish | Zinc Coated |
| Dimensions | W550 x D220 x H550mm |
| Front and Back Plate Construction | SUS304 Stainless Steel |
| Gasket Construction | Rubber |
| Gross Mass | 22kg (approx) |
| Guide Arm Construction | SUS304 Stainless Steel |
| Inlet Pipe / Union Construction | SUS304 Stainless Steel |
| Maximum Working Pressure | 1350kPa |
| Minimum Inlet Pressure | 220kPa |
| Model Number | FSHR36SS |
| Mounting Plate Construction | SUS304 Stainless Steel |
| Nozzle Construction | Twist Action Brass |
| Pipe Construction | SUS304 Stainless Steel |
| STD Hose Length & Diameter | 36m x 19mm diameter |
| Support Assembly Construction | SUS304 Stainless Steel |
| Valve Stem | Stainless Steel |
| Warranty | 1 year* |
📄 Download Technical Data Sheet (PDF)
Compliance & Servicing
Fire hose reels must be installed in accordance with AS 2441 and inspected and serviced annually in accordance with AS 1851 by a licensed fire protection technician. Under AS 2441, hose reels must be positioned so the hose can reach every part of the floor area it is protecting — a 36m reel covers up to approximately 50m from the reel installation point when combined with the jet reach of the nozzle.
Frequently Asked Questions
Where to Install a Stainless Steel Fire Hose Reel
- Marine vessels, wharves, and marinas
- Coastal commercial buildings exposed to salt air
- Food processing and commercial kitchen facilities
- Swimming pools and aquatic centres
- Car washes and vehicle wash-down bays
- Wet industrial environments and chemical plants
- Any installation where the reel is exposed to moisture, salt, or cleaning chemicals
Supplied Complete With
- 19mm × 36m fire hose
- Stainless steel reel body
- Ball valve
- Hose guide
- Wall bracket
When should I choose a stainless steel hose reel over a standard steel reel?
Choose stainless steel whenever the installation is exposed to salt air, moisture, cleaning chemicals, or food-grade hygiene requirements. Marine environments and coastal buildings are the most common applications, but food processing and commercial kitchens also specify stainless steel because cleaning chemicals and steam accelerate corrosion on standard powder-coated steel reels. If the reel is in a standard indoor dry location, a powder-coated steel reel is sufficient and more cost-effective.
Does a stainless steel hose reel need any special installation?
No — the installation method is identical to a standard steel hose reel. The stainless steel reel connects to the same 25mm DN25 water supply connection as standard reels, uses the same wall bracket mounting, and meets the same AS 2441 installation requirements. A licensed plumber and fire protection technician are required for the installation to comply with Australian Standards.
What is the difference between a 36m and 50m fire hose reel?
A 36m hose reel is the standard specification for most commercial buildings and meets AS 2441 coverage requirements for the majority of floor plans. A 50m reel is specified for larger floor plates, open-plan warehouses, or buildings where the reel mounting point cannot be positioned closer to the far end of the coverage zone. AS 2441 requires the hose to reach every point of the floor area — confirm coverage with your fire protection installer before specifying 36m vs 50m.
How often does a fire hose reel need to be serviced?
Fire hose reels must be inspected and serviced annually in accordance with AS 1851 by a licensed fire protection technician. The service includes checking the hose for damage, testing the valve and nozzle, confirming correct water pressure, and verifying hose reel rotation. A 6-monthly inspection is also required for most commercial building compliance — check your building’s essential services maintenance schedule.
Does the stainless steel hose reel come with all the parts needed for installation?
Yes — this reel is supplied complete with the 19mm × 36m hose, stainless steel reel body, ball valve, hose guide, and wall bracket. A licensed plumber is required to connect the reel to the building’s water supply in accordance with AS 2441. If you need a nozzle lock device or specific fittings for your installation, contact us before ordering.
Additional information
| Weight | 25 kg |
|---|
